SnowEx
Additional Images

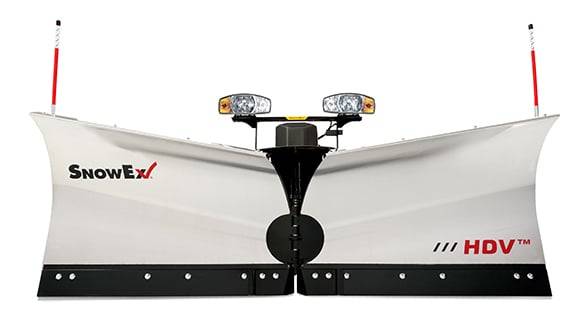

9'6" HDV Stainless Steel

9'6" HDV SS Tractor Plow Package

N/A

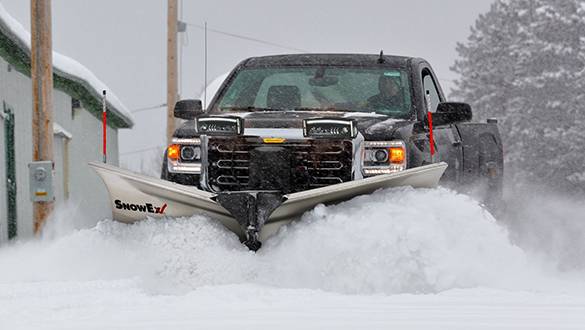

The HDV heavy-duty V-plows are built like nothing else on the market. Available in either durable powder-coated mild steel or rust-resistant stainless steel – and with either 8’6″ or 9’6″ blade widths – the plows boast 16-gauge flared moldboards that are reinforced by two robust angled power ribs. Double-acting angle cylinders, trip-edge protection, adjustable center cutting edges and responsive direct lift round out the many advantages of these feature-packed V-plows.

Fits: Class 2-6 Trucks & Tractors.

Complete Plow Pricing for Tractor Plows Includes: Blade Assembly, "Big Box", Control, Vehicle-Specific Mount.
Was: $13,773.55
Sale: $11,018.84
Save: 20%
Save: $2,754.71
Qty:

Description

Moldboard Options: Stainless Steel

Blade Type: V-Plow

Vehicle Compatibility: Truck Class 2 - 6 (under 26,000 lb GVWR) & Tractors

Approx. Weight*: 1,020 lbs

Plowing Width (Straight):
Straight: 114" - 124.5" (w/ Wings)
V: 103" - 126" (w/ Wings)
Scoop: 98" - 110" (w/ Wings)

Plowing Width (Full Angle): 103.2" - 118" w/ Wings

Blade Width: 9'6"

Blade Height:
At Hinge: 31"
At End: 39"

Angle Cylinders: 1.75" x 11"

Cutting Edge: ½" (Standard)

Blade Thickness: 16 ga

Reinforcement Ribs: 8 vertical/1 angle

Trip Springs: 6 steel

Details

  • N/A
  • N/A
  • N/A
  • SnowEx
  • New
